    Project ZU: Rear Tire Carrier

    I finally finished my spare tire carrier using a junked VX door I picked up over the summer. Over a year ago I had an idea to make a tubular spare tire carrier for the VX. The project was quickly ruined once I realized how funny it would look with the rear door bulge...which started the next project

    Goal: use a VX rear door to make a spare tire carrier (like Tom4bren, Marlin, & eblank) but remove the "bulge" & have the bumper wrap the tire.

    Last January I told Jack (PBkid) my plans at a VX meet & he told me "you don't want to do that"

    In July I sourced a junked VX for the back door & met Mdwyer in the process

    In September I cut the center of the door out and test fitted it.

    In October I welded 1"x1" square tubing into the door & found a trooper spare tire carrier from the junk yard.

    In November I welded in sheet metal without the "bulge" and began the long process of fiberglass/bodyfill work.

    In December I pulled the glass & cladding from my old door and installed them on the custom door.

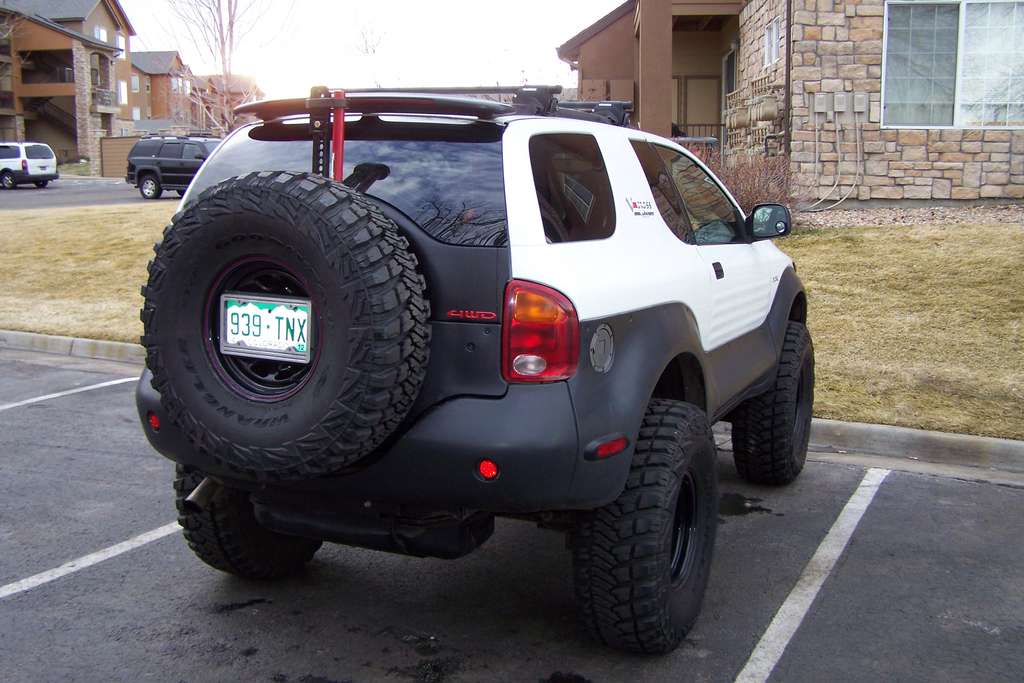

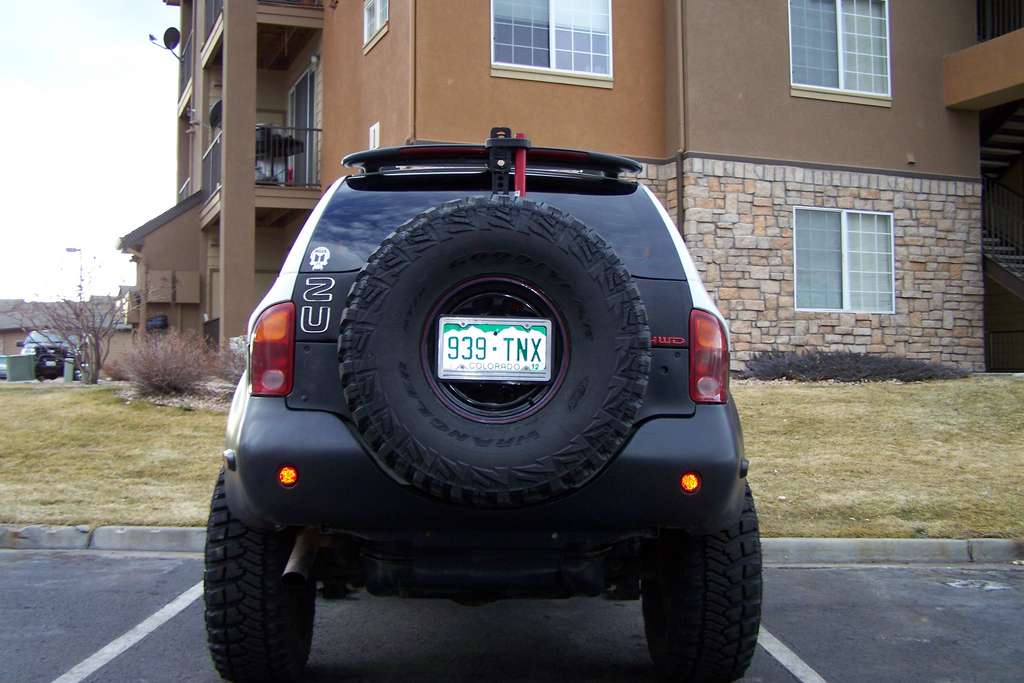

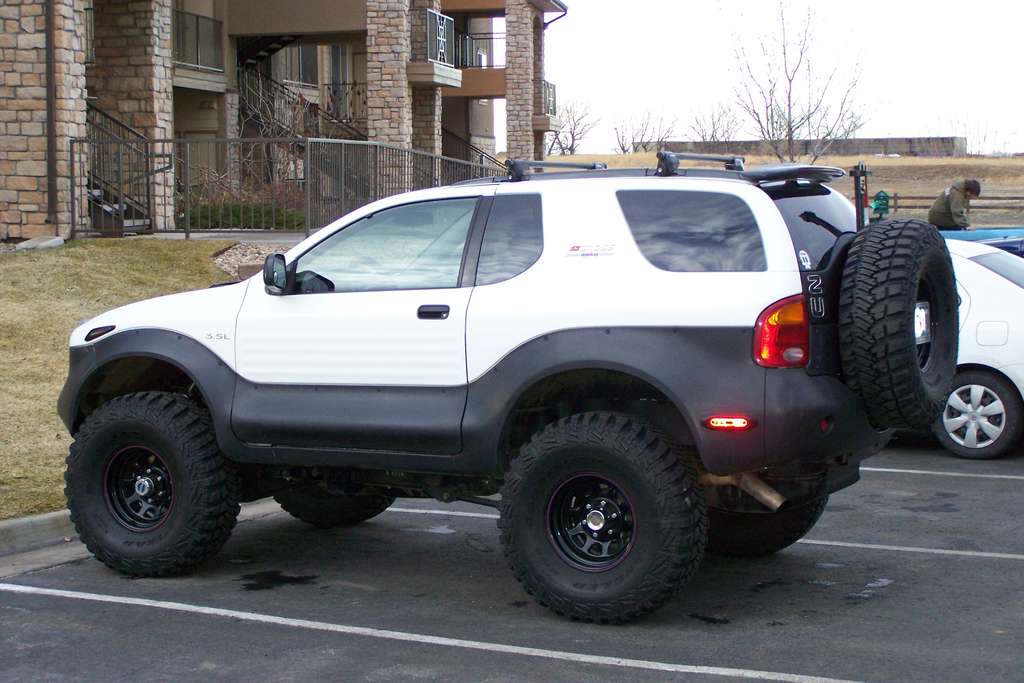

    Overall I'm happy with the door. I finally don't need to worry about where to put the big spare tire

    And here we are:

    Test fitting the door

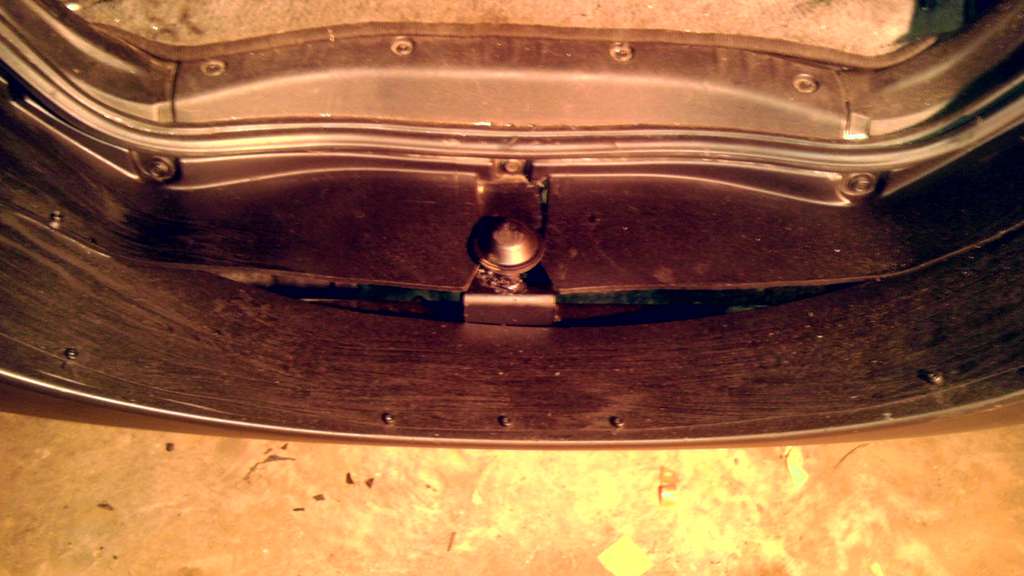

    I used a bump stop to take the weight off the latch. The bumper had to be cut for the tire to fit so I used sheet metal for the finish.

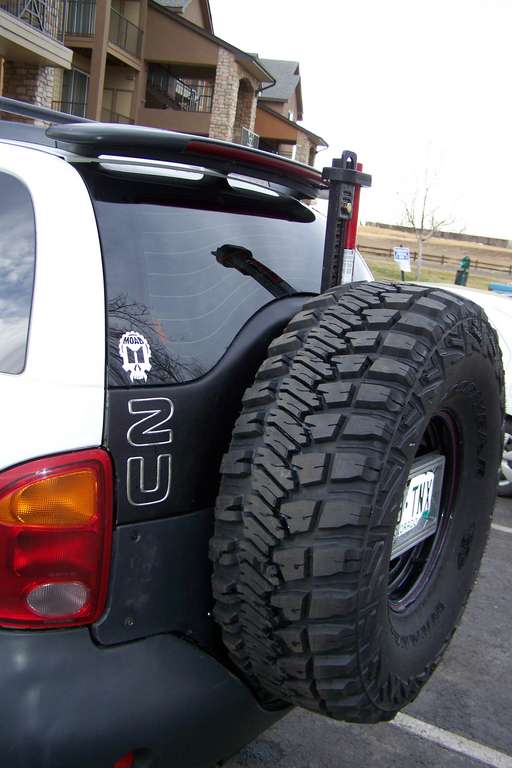

    I left some imperfections on the center of the door because I'll always have a tire back there. I also decided to make the cladding end under the tire rather than attempt to fit the cladding across the door.


    I kept this project pretty quiet until the end. There were several members following the build so for my next project I will post a thread and keep it updated with progress.
    Last edited by VXorado : 01/22/2012 at 03:11 PM

  2. #2
    Member Since
    Mar 2011
    Location
    1999, Astral
    Posts
    218
    Thanked: 0
    Sooooo great, I cant wait to try something like this with mine! Way to go and take the plunge. Do you have a picture of the back with the tire off? How is the HiLift mounted as well?

    First!
    Check out VehiCROSSAmerica on Facebook or @VehiXAmerica on Twitter

  3. #3
    Member Since
    Jun 2009
    Location
    99 Matte Midnight Sand Met... oh nevermind. VX #0377...Project ZU
    Posts
    2,656
    Thanked: 4

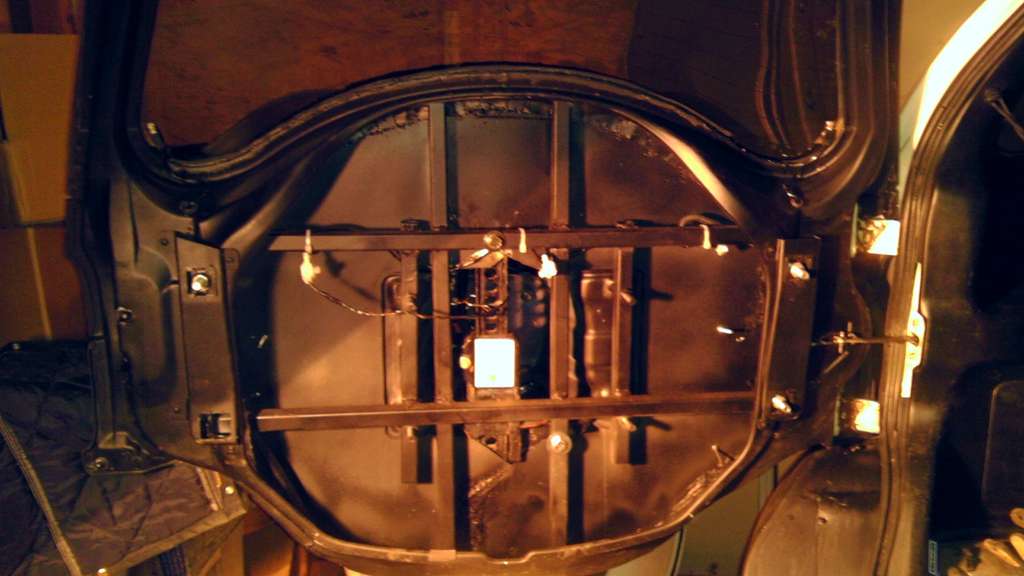

    If you look at the pic with the square tubing you can see two bolts going through the tubing which go into the hi-lift jack & secure them to the door.

    I don't have a pic without the tire but can take one if you want.

  4. #4
    Member Since
    Apr 2008
    Location
    2000 Foxfire Red Mica, 0555 (RIP) & 0717
    Posts
    6,229
    Thanked: 3
    Truly amazing work Jon! Too bad shipping something that size is so expensive or you might have orders already...

  5. #5
    Member Since
    Jan 2005
    Location
    2001, Ebony Black, 1153
    Posts
    2,264
    Thanked: 2
    Awesome job, looks great!!!!!

  6. #6
    Member Since
    Nov 2009
    Location
    2001Proton 1432, ex 2001 Dragon Green Mica 0168 (RIP May 2017)
    Posts
    3,590
    Thanked: 31
    Looks great...can't wait to see it in person.
    Live, Love, Forgive and Never Give Up

  7. #7
    Member Since
    Feb 2007
    Location
    2000 Proton VX - 0776
    Posts
    9,258
    Thanked: 0
    Fantastic work. The end product is very clean.

    If you haven't already, I recommend that you add a plate behind the upper hinge. The hinge is stout enough but the sheet metal of the door isn't & my hinge is tearing loose from the door. That bump stop should help but is only for vertical support. There will also be longitudinal stress applied to the hinge (especially during rock crawling).
    [SIGPIC][/SIGPIC]

    Put a smiley after you say that Bub.

  8. #8
    Member Since
    Jun 2009
    Location
    99 Matte Midnight Sand Met... oh nevermind. VX #0377...Project ZU
    Posts
    2,656
    Thanked: 4
    Thanks guys, I considered working on a second one with my old door & putting it for sale but the time (increased price) & size would be a major issue. I have smaller projects planned for the future & hope to offer those things for sale if there's interest.

    Tom, I looked into reinforcing the hinges but didn't have enough room behind them to add strength. If I start having issues, I'll weld the hinge to the door... or something

  9. #9
    Member Since
    Dec 2008
    Location
    Former owner 2001, Foxfire Red, #0663
    Posts
    7,311
    Thanked: 33
    It looks Amazing! I love the look of the tire on back, and reducing the depth makes it look proportionately perfect!
    Plus, it's really cool to see something totally fresh and different.
    I'm in awe of these skills many of youz guyz have! WoW!!
    VX KAT
    ....the adventure BEGINS ANEW! ...2015......
    Remember that life is not measured in the breaths you take, but rather in the moments that take your breath away.

  10. #10
    Member Since
    Oct 2004
    Location
    99 Victory White Ironman 0685
    Posts
    1,579
    Thanked: 0
    Looks fantastic!! That 1st picture is scary though
    [SIGPIC][/SIGPIC]
    Chi Dog...Dog is my Co-pilot
    Onward thru the fog
    Leave it BETTER than you found it!

  11. #11
    Member Since
    Dec 2008
    Location
    Former owner 2001, Foxfire Red, #0663
    Posts
    7,311
    Thanked: 33
    Quote Originally Posted by Scott Harness View Post
    That 1st picture is scary though
    at least it was a spare door..

  12. #12
    Member Since
    Nov 2004
    Location
    1999 Ex-Ebony..Fully Line-X'd ..0189...THE "ORW".....matching Line-X'd Trailer made from a written off 2001 Ebony.
    Posts
    4,403
    Thanked: 14
    WOW..this is .......

    Love it.

    Jo
    VX.info...PLEASE SUPPORT THIS SITE WITH YOUR VOLUNTARY $20 DONATION...
    Absolutely the best $20 you'll spend per year on your VX.


    ~ ~ > OFF ROAD WHORE <~ ~
    [SIGPIC][/SIGPIC]

  13. #13
    Member Since
    Jun 2008
    Location
    2001,black, vehicross 1353
    Posts
    426
    Thanked: 0
    Quote Originally Posted by VXorado View Post
    Thanks guys, I considered working on a second one with my old door & putting it for sale but the time (increased price) & size would be a major issue. I have smaller projects planned for the future & hope to offer those things for sale if there's interest.

    Tom, I looked into reinforcing the hinges but didn't have enough room behind them to add strength. If I start having issues, I'll weld the hinge to the door... or something
    Glue or adhere support shims onto the cladding so as you shut the door it slides up onto the shim supports. Then the door is held up by the hinges, the latch, and the shim supports. It aint goin anywhere.
    [SIGPIC][/SIGPIC]
    Milwaukee WI

  14. #14
    Member Since
    Jun 2009
    Location
    99 Matte Midnight Sand Met... oh nevermind. VX #0377...Project ZU
    Posts
    2,656
    Thanked: 4
    Quote Originally Posted by djvx View Post
    Glue or adhere support shims onto the cladding so as you shut the door it slides up onto the shim supports. Then the door is held up by the hinges, the latch, and the shim supports. It aint goin anywhere.
    The bump stop I installed seems to be doing a good job supporting the door. I also installed a safety strap to the tire carrier just in case something really broke. I was a little nervous when I first installed the door that a "weak link" would show but now I'm confident the door will hold up.

  15. #15
    Member Since
    Jun 2008
    Location
    2001,black, vehicross 1353
    Posts
    426
    Thanked: 0
    Quote Originally Posted by VXorado View Post
    The bump stop I installed seems to be doing a good job supporting the door. I also installed a safety strap to the tire carrier just in case something really broke. I was a little nervous when I first installed the door that a "weak link" would show but now I'm confident the door will hold up.
    Im starting a thread looking for a back door.
