Awesome! I may be PMing you about a few things in the next few months if you don't mind...? Paints and processes and what not...
BTW, the villian side of me has to ask... is that an old skool Wagoneer I see or maybe a CJ?
EDIT: Or maybe it's a CJ project with ol skool Wagoneer axles? LOL
Feel free to PM me any time and I'll shoot you my contact info.Quote:
Originally Posted by ZEUS
You are correct in that it is a CJ project. It is an 86 CJ-8 with a world cab steel hard top. It has only 38,000 original miles on it. The original motor, tranny, transfer case is missing but the deal included a brand new Cummins 4BT, advanced adapter overdrive, Richmond 5 speed and a Dana 300 transfer case. All brand new. The top is what makes it rare.
It is a super rare Jeep barn find if you will.
did you get the 4.77's from chadzu on the planet? was talking to him and he said he had someone he was working with already.
This and the other thread are very encouraging Buffy. Whenever I change the oil and see rust here or there or just caked on dirt on the diff I now know it's possible to bring things back to near-factory condition. Not cheap I imagine, but possible nonetheless.
Great work!
Yea, got them from chadzu. I also got an ARB for the front from him. Good guy to deal with.Quote:
Originally Posted by yellowgizmo99
No kidding... a Scrambler Panel??? I've never heard of such a thing. I'd love to keep up with that build too when you get to it. :) Expedition rig?Quote:
Originally Posted by Buffy
Buffy,
Is indy going to stop saling the aussies for all zu axles?
They are very rare. There were 230 built from 81 to 85 for the state of Alaska as postal units which were right hand drive and had no windows in them. Those built with windows were all exported. Most were sent to Austraila as the Overlander and the rest to Venezuala with left had drive. Mine was supposed to exported but for some reason never left the country. Speedo is in Kilometers. Here are a couple pictures of it when I got it home and did some cleaning on it. It has troop seats in the back like the old FJ40s. I've been trying to verify if this was the last unit built with the steel hard top but have not been very successful. It has a very high serial number and was not originally titled until 12/24/86 and seeing that there we only 128 built in 86 I think I've go a shot. :yesy:Quote:
Originally Posted by ZEUS
The interior you are seeing is the original interior the truck came with. It literally sat in a dark shop for over 12 years.
https://www.supermotors.net/getfile/...e/100_1148.jpg
https://www.supermotors.net/getfile/...e/100_1157.jpg
https://www.supermotors.net/getfile/...e/100_1164.jpg
https://www.supermotors.net/getfile/...e/100_1169.jpg

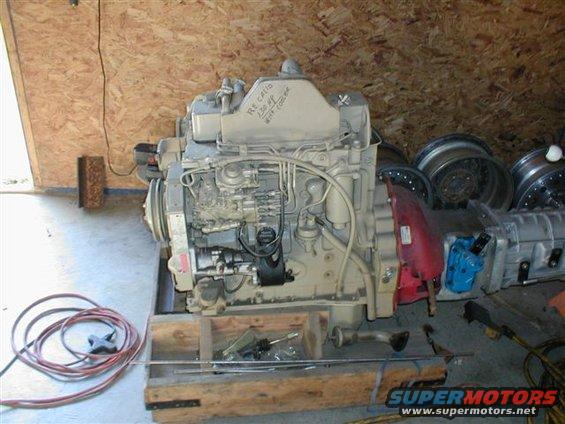

And let's not forget the powerplant!
https://www.supermotors.net/getfile/.../truck-040.jpg
Matt indicated that they were going to stop selling them. Not sure if it was a done deal or not but it sure sounded that way.Quote:
Originally Posted by Triathlete
Man that Jeep is cool!
Looks like they had the same backseat design guidance as the VX engineers - give it a spacious backseat with virtually no way to get back there. :pQuote:
Originally Posted by Buffy
That "troop seat" looks a lot like the seats at the end of a subway car.
I can't seem to reply with a quote - weird! About the Jeep tho: WOW!!! That is one HELL of a find! Thanks for all the info. It is sure to be an awesome rig when you get er up and runnin!
It looks like you can fit in the backseat between the front seats as well as through the read door. No such luck with the VXQuote:
Originally Posted by vt_maverick
Yup you're right circ, definitely was forgetting between the front seats, and for some reason I was thinking the bench in the photo was against the back not along the sides. What a weird lay-out!
http://m.wimp.com/armoredvehicle/ how about one of these!
I guess if you want something that is totally useless! To big for the road, to big for the trail.Quote:
Originally Posted by bigblock8396375
wow
My porridge is too hot,my porridge is too cold!
Back to Trooper action!
Made some good progress over the weekend. I got the rear end installed and the clutch hydrolics installed as well.
The end is in! :P
http://www.supermotors.net/getfile/8...e/100_1720.jpg
http://www.supermotors.net/getfile/8...e/100_1721.jpg
http://www.supermotors.net/getfile/8...e/100_1722.jpg
Front steering knuckles cleaned and in primer:
http://www.supermotors.net/getfile/8...e/100_1724.jpg
Passenger CV getting cleaned and new boots installed:
http://www.supermotors.net/getfile/8...e/100_1727.jpg
http://www.supermotors.net/getfile/8...e/100_1728.jpg
Driver side CV before:
http://www.supermotors.net/getfile/8...e/100_1729.jpg
And after:
http://www.supermotors.net/getfile/8...e/100_1730.jpg
The clutch hydrolic hose finally made it!
http://www.supermotors.net/getfile/8...e/100_1692.jpg
New OEM cluth master cylinder:
http://www.supermotors.net/getfile/8...e/100_1693.jpg
Installed:
http://www.supermotors.net/getfile/8...e/100_1694.jpg
Power booster installed:
http://www.supermotors.net/getfile/8...e/100_1695.jpg
The wife and I made a junk yard trip on Saturday and scored a set of brakets to install the VehiCROSS seat in my Trooper. The brakets are perfect and will allow me to install the seat without modifying the floor pans. They are out of a Kia Sportage 4 door. It is like they were made for this purpose.
http://www.supermotors.net/getfile/8...e/100_1725.jpg
http://www.supermotors.net/getfile/8...e/100_1726.jpg
You are really making progress,I wish I still had my 89 Trooper.Can't wait to see it finished! Looks great!
The power booster, what kind is that? I already have the 2nd gen Trooper brake upgrade in mine, but I would like to upgrade the booster eventually also....details?
Thanks - Bart
It is a power booster out of another 1st gen Trooper that was better than my original. I may have gotten it out of a V6 model but cannot remember if it was or not. Of course I am not sure there is a difference between the two though.
I thought "The end is nigh." :P Lookin great as always! Just keep wrenching just keep wrenching...
OK, yeah, supposedly, you can get one outta a 3.1 Rodeo and it will be a little bigger/better. The 2nd gen front brake setup is a must if you ask me, something you might look into also.Quote:
Originally Posted by Buffy
Bart
I already have most of the parts to do the brake upgrade. :smilewink I had not heard about using the power booster out of the Rodeo though. Hmmmm may need to do some cyfering. :p:Quote:
Originally Posted by nfpgasmask
Yeah, there is a thread on the Planet about it somewhere. And you don't NEED the upgraded booster, I just read that you can use one. I just did the 2nd gen brake pads, rotors, dust covers and calipers with mine and it made a HUGE difference.Quote:
Originally Posted by Buffy
Bart
I decided to add power windows to my Trooper. I have a set of new OEM window regulators and motors to start with. I found a LS Trooper in the junk yard and got all the door panels, swithces, wiring etc. I was hoping for a plug and play kind of thing but no such luck. There is a main wire harness that connects under the dash behind the heater box and runs all the way to the back of the truck. I had to remove this harness from the LS thinking I could just plug the motor into it.... ummmm no. So what I had to do is strip the window motor wires out of the harness and I will make a separate harness that will be used to run the windows. I will have to take the wire out of the old connector and place them in the connector that is in my truck. this little project is still in progress, kind of at a stand still until I can get a terminal release tool to move the wires.
http://www.supermotors.net/getfile/8...e/100_1733.jpg
The old connector, notice all the slots are full. The one in my truck is half empty.
http://www.supermotors.net/getfile/8...e/100_1738.jpg
Here is the front axle back together, the ARB is in there!
http://www.supermotors.net/getfile/8...e/100_1735.jpg
I got the upgraded air pump so I can air up my tires etc after a day on the trail:
http://www.supermotors.net/getfile/8...e/100_1736.jpg
The other thing I got accomplished this weekend is the back seat is now installed. I was very pleased at how easy it was to install, it all dropped right into place. What made the install so simple was the seat brackets we got out of the Kia Sportage.
http://www.supermotors.net/getfile/8...e/100_1726.jpg
Removing the old seat striker...
http://www.supermotors.net/getfile/8...e/100_1742.jpg
I centered the seat and made some marks of where to drill...
http://www.supermotors.net/getfile/8...e/100_1745.jpg
This is 3/16" plate, the thickness allows the bracket to lay flat on both the front vertical and horizontal surfaces. I decided to span three ribs for extra strenght.
http://www.supermotors.net/getfile/8...e/100_1746.jpg
I used 1/8" plate on the backside for additional strength...
http://www.supermotors.net/getfile/8...e/100_1747.jpg
The cool part was the original VX stryker fell perfectly in a valley, I just had the align it up and weld it in place.
http://www.supermotors.net/getfile/8...e/100_1748.jpg
Finished product, the springs are in backwards for now but I'll flip them when I do the final seat installation. I am using 7/16" grade 8 bolts.
http://www.supermotors.net/getfile/8...e/100_1749.jpg
http://www.supermotors.net/getfile/8...e/100_1750.jpg
Today's chore is to try and figure out a mounting system for the front seats.
FUN! Did you think about adding a quick release to the rear seat?
:cool!:I hadn't thought about that. The seat will still roll forward out of the way and I can always pull the pins and remove the seat that way. This did just give me an idea though. I may see if I can find one of the pins you use for a trailer hitch for quick release. Hmmmmm.... :cool!:Quote:
Originally Posted by ZEUS
I spent the morning looking at how to install the front seats. I took the mounts off both seats and while similar they are different enough to pose a big head ache. What I am thinking about is cutting the sheet metal out of a Rodeo and welding that into the floor of the Trooper, I think that may be easier in the long run than trying to rig up some modified seat bracket.
http://www.vehicross.info/forums/sho...7&postcount=20
Not sure if that will take you to the post or not... if not here is the thread it came from: http://www.vehicross.info/forums/sho...?t=8968&page=2
The front seats sound like a nice challenge tho! Do they sit kinda low for the Troop at this point?
That is exactly what I was thinking about using!
The seat being too low is a concern that I have. If you put the seats side-by-side their mounting bases are about the same. The first gen square mounting pedistal is pretty high. I will have to take some measurments over the weekend to see what I come up with. Once I figure everything out I will post up all the specs. It sure has been nice having a welder of my own now, it opens up so many possibilities when working on my projects.
Coming along quite nicely! I would love to find an old 1st gen that already has the V6 swap, and put the montero jump seats in the back. I have always love the look and the idea of them folding down and making a bed in conjunciton with the other seats.
I've gotten the front axle, CVs and steering knuckles installed. This morning I got the driveshafts installed, that front drive shaft is a pain to get back in!
Front knuckles with fresh paint and new seals....
http://www.supermotors.net/getfile/8...e/100_1763.jpg
I had some extra loud paint laying around and decided to do something different.... :smilewink
http://www.supermotors.net/getfile/8...e/100_1766.jpg
http://www.supermotors.net/getfile/8...e/100_1767.jpg
http://www.supermotors.net/getfile/8...e/100_1768.jpg
http://www.supermotors.net/getfile/8...e/100_1770.jpg
I am waiting on some parts for the big brake kit and I can finish the front end. Hard to believe I almost have this thing on its wheels again.
I started working on getting the front VX seats installed. It has caused me some head scratching moments but I think I am almost there. The thing with the VX seats is the off-set is made into the seat frame insteat of the mounting bracket. So here is what I am doing....
Here are the seats side-by-side. Notice the lean on the VX seat, this is the passenger seat....
http://www.supermotors.net/getfile/8...e/100_1757.jpg
http://www.supermotors.net/getfile/8...e/100_1758.jpg
Here are the seat mounts I cut out of a Rodeo. Plan to spent about 4 hours minimum to get these panels out. I had blisters on my blisters swinging a 3 pound hammer getting the panels loose.
http://www.supermotors.net/getfile/8...e/100_1764.jpg
http://www.supermotors.net/getfile/8...e/100_1765.jpg
This is the driver front mount after a couple hours of cutting and shaping....
http://www.supermotors.net/getfile/8...e/100_1771.jpg
http://www.supermotors.net/getfile/8...e/100_1772.jpg
Stock mount out....
http://www.supermotors.net/getfile/8...e/100_1773.jpg
I had to move the new floor mount about 2 inches forward to allow for the longer travel of the new seat. If installed at the original location the front seat would actually hit the back seat. Definitely a good mod for someone with long legs..
I know I had my seats all apart once. Why not just take the actual seat off of the VX hardware and fab a plate to bolt it to the trooper hardware? IIRC it was only 4 bolts holding the seat on?
My old VX seats currently live in my home office. I call the driver's seat "that one" and the passenger seat is named "Ilene". :p:laughing::rotate:Quote:
Originally Posted by Buffy
I was going to that, took the both seats apart for a comparison. One side of the VX seat frame has about an 1 1/2" drop made in it. I looked at fabbing up some sort of drop bracket for one side but didn't come up with anything that I liked. I looked up how Squatch did it on the planet but the seats he used had flat bottom, needless to say I was a tad disappointed with my discovery.Quote:
Originally Posted by Marlin
It was a busy day today. I got the front suspension back together, torsion bars back in and the new brake calipers painted. I will get the them installed tomorrow and perhaps the new master cylinder. Man I am getting close to being back on 4 wheels again!!
Front hub with new bearing, seal and ready for the rotor....
http://www.supermotors.net/getfile/8...e/100_1779.jpg
My Aisin hub disassembled and cleaned....
http://www.supermotors.net/getfile/8...e/100_1778.jpg
All the nuts, bolts and screws cleaned and ready for installation....
http://www.supermotors.net/getfile/8...e/100_1777.jpg
I FINALLY get to use my rotors, these have been on the wife's dryer for well over a year....
http://www.supermotors.net/getfile/8...e/100_1783.jpg
Outter hub before detailing....
http://www.supermotors.net/getfile/8...e/100_1780.jpg
and after detailing, I delegated this to the wife (she has a much steadier hand that I do)....
http://www.supermotors.net/getfile/8...e/100_1790.jpg
All done, just waiting for the paint to dry on the outter hub to dry to finish up....
http://www.supermotors.net/getfile/8...e/100_1788.jpg
Calipers detailed with caliper paint. I am curious to see if it is resistant to brake fluid....
http://www.supermotors.net/getfile/8...e/100_1791.jpg
Sway-A-Way torsion bars installed....
http://www.supermotors.net/getfile/8...e/100_1792.jpg
