Heater/AC blower motor, problem solving tips!

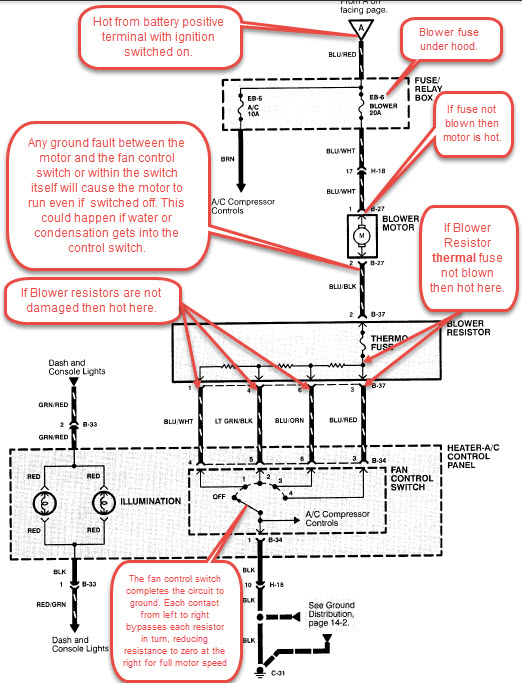

Blower motor circuit diagram with helpful tips - from blower fuse to final ground.
