Power Supply Caps

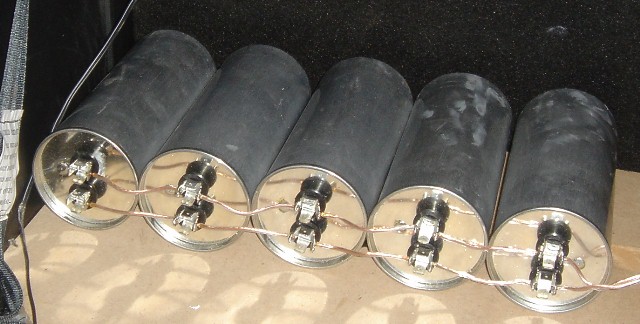

Added some more caps to the Milberts B grid power supply. These are paper in oil.

Photo Details

Date: February/6/05
Views: 1,130
Poster:

Super VXer
See all User Photos

Registered: June 2002
Location: 2001 Proton VX 0790
Posts: 801

Linked Thumb:
Linked Image:

Post #1

SkidPlate

Super VXer

June/6/05

Your going to need some thicker wire...

Post #2

Hotsauce

Super VXer

October/9/05

These aren't 12v caps. They're paper/oil, 80uf 600V rated. They're getting 400V for the grid supply of the power amp. High voltage, low current.
